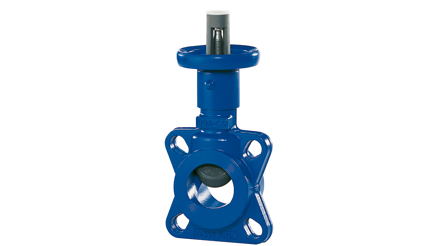

BOA-SuperCompact
Design
Globe valve to DIN/EN with wafer-type body, super-compact DN face-to-face length to EN 558/94, slanted seat, bonnetless; with flange alignment holes for centring, dead-end service and downstream dismantling; insulating cap with anti-condensation feature as standard, position indicator, locking device, travel stop, soft main and back seat; maintenance-free, full insulation possible.
Application
Hot-water heating systems up to 120 °C. Air-conditioning systems. Not suitable for fluids containing mineral oils, steam or fluids liable to attack EPDM and grey cast iron. Other fluids on request.
Globe valve to DIN/EN with wafer-type body, super-compact DN face-to-face length to EN 558/94, slanted seat, bonnetless; with flange alignment holes for centring, dead-end service and downstream dismantling; insulating cap with anti-condensation feature as standard, position indicator, locking device, travel stop, soft main and back seat; maintenance-free, full insulation possible.
Application
Hot-water heating systems up to 120 °C. Air-conditioning systems. Not suitable for fluids containing mineral oils, steam or fluids liable to attack EPDM and grey cast iron. Other fluids on request.
